Servo Move 0.6mm PPGI Wall Panel Roll Forming Machine

  • 1
  • 2
  • 3

Brand Name : NKH MACHINERY

Model Number : YX7-150

Certification : CE/SONCAP/CSA

Place of Origin : CHINA

MOQ : 1 UNIT

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 UNITS/MONTH

Delivery Time : 40 WORKING DAYS

Packaging Details : NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET

Cutting blade material : Cr12, heat treatment

Weight : 6T

Roller material : 45# steel

Raw material : PPGI/Galvanized/Alu-Zinc/PPGL sheets, G245-550

Shaft material : High Grade No.45 Forged

name : steel roof roll forming machine

Control system : PLC control system

Contact Now

Twin Sides Fence Roll Forming Machine For Wall Panel, flying cut, servo move

Quick Detail:

  1. Thickness : 0.4-0.6mm
  2. Material : GI, 550Mpa
  3. Input width : 134/225mm
    1. Material weight: 1.5MT cap.
    2. Driven way: by 4Kw driven motor
    3. Cutting way: stop to cut, there is waste after cut-off
    4. Cutting tolerance : ±1mm

Machine list:

  1. 1.5MT*300mm manual & twn row un-coiler
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out table
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 1.5TX300mm Manual de-coiler
  • Roll forming machine with cutting details as below table :
Suitable roll forming material galvanized steel sheet
Thickness 0.4mm-0.6mm
Coil input width as per order
Carriage Frame design Wall-plate-frame-design, double sides
Roll forming stages 8 stages
Roller material 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ65mm
Main motor power 4Kw with reducer, one unit
Line speed of roll former mtr per min
Hydraulic group power 5.5Kw, one unit
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 480V/60Hz/3PH or requirements
Major Color of Machine Painted RAL 5015(Blue) or customized
  • PLC Control System

The two profile share in one control system

Siemens brand PLC and touch screen, Delta Servo motor and driver, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack 4 meter length rolled type

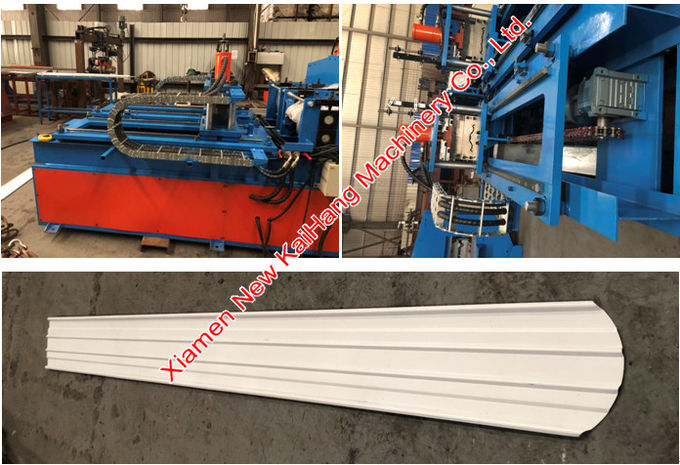

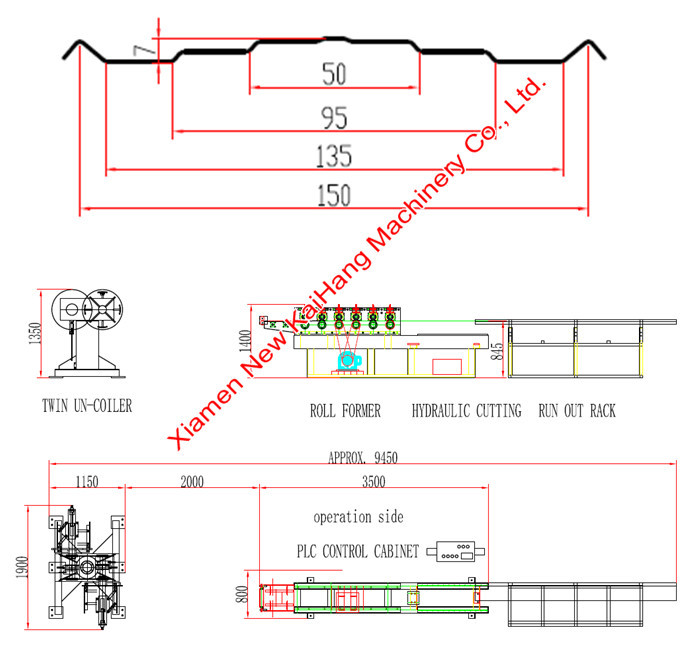

Profile Drawing/Layout/Equipment reference pictures:

Servo Move 0.6mm PPGI Wall Panel Roll Forming Machine

Servo Move 0.6mm PPGI Wall Panel Roll Forming Machine
