12-15m/Min Auxiliary Equipment Hydraulic De Coiler 3 Tons Capacity

Name: 1215mMin Auxiliary Equipment Hydraulic De Coiler 3 Tons Capacity
Brand: NKH MACHINERY
Price: 1 USD

12-15m/Min Auxiliary Equipment Hydraulic De Coiler 3 Tons Capacity Manufactures

Brand Name : NKH MACHINERY

Model Number : 3T*600MM

Certification : CE/SONCAP/CSA

Place of Origin : CHINA

MOQ : 1 UNIT

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 UNITS/MONTH

Delivery Time : 10 WORKING DAYS

Packaging Details : NUDE CARGOES WITH ROLL FORMER IN 20FT/40FT CONTAINER

Condition : New

Tile type : work with roll forming machine/building material machinery

Use : Roof/wall

Warranty : 12months

Production capacity : 12-15m/min

Color : Client's Request

Contact Now

Standing seam/ seam lock roll former equipped hydraulic de-coiler, 3Tons capacity

Features:

The coil rotated by driven motor

Hydraulic group to expand or loose

Suit with 15mpm standing seam, downpipe roll former

Quick Detail:

Thickness : 0.4mm-0.8mm
Material : Galvanized Sheets, PPGL, G300-G550
Input width : < 600mm
Material weight : 3MT
Rotation way: by driven motor

Description/Technical Parameter details of the de-coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Frequency Inverter to regulate turning speed: Motor: 2.2KW

Load capacity=3Ton;

Coil Inner – diameter =451-530mm

Coil outer-diameter=Max.1500mm

Coiler Width=Max.600mm

Driving motor to turn the coil

Limit switch for auto stop/start device

Application:

A hydraulic de-coiler is equipment for unrolling the steel coils and always works for gutter, standing seam, seam lock roll forming machine, rainspout roof making machine and embossing machine line etc.

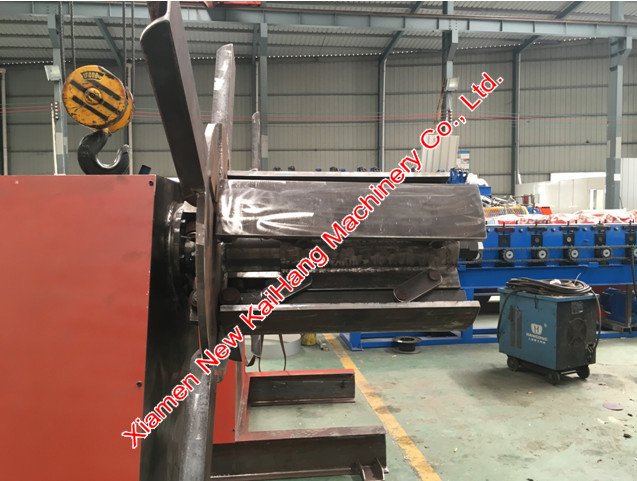

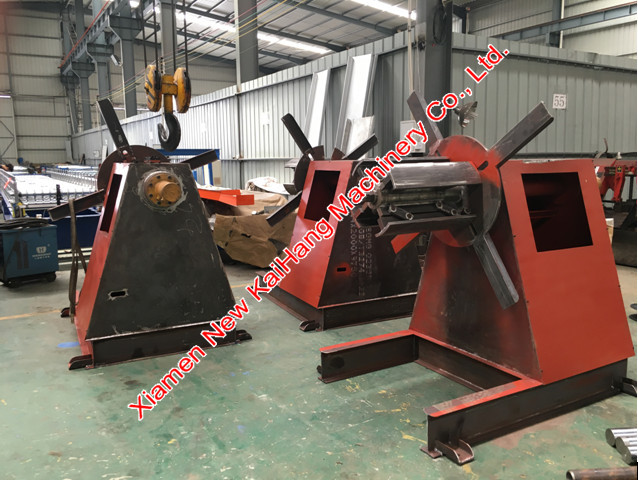

Profile Drawing/Layout/Equipment reference pictures:

12-15m/Min Auxiliary Equipment Hydraulic De Coiler 3 Tons Capacity
