Double Rows Roof Panel Roll Forming Machine , Stud And Track Roll Forming Machine

Double rows U/ V panel rolling make machine, galvanized sheets, furring channels/ stud and tracks roll forming

Brief Introduction:

There are two rows rolling tools ( left and right, as Pic2 above) mounted on a twin rows or double rows roll forming machine and each roll forming is separated to each other, so that any break downs, repairs or maintenance on one row of rolling tools will not stop the running and production of the other row of rolling tools. There is only one motor and one driving or primary shaft shared by and connected to the left and right row of roll forming parts.

NOTE: We can design 3-in-1 roll forming machine or 4-in-1 roll forming machine if clients need, however the profiles shall be confirmed by our engineer before a proposal shall be made.

Quick Detail:

1. Thickness : 0.4-0.6mm
2. Material : GI, 550Mpa
3. Input width : 57/33mm
   1. Material weight: 1.5MT cap.
   2. Driven way: by 4Kw driven motor
   3. Cutting way: stop to cut, there is waste after cut-off
   4. Cutting tolerance : ±1mm

Machine list:

1. 1.5MT*300mm manual un-coiler
2. Roll forming machine
3. Hydraulic cutting device
4. Run out table
5. PLC control system

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

• Roll forming machine with cutting details as below table :

• PLC Control System

The two profile share in one control system

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter length rolled type

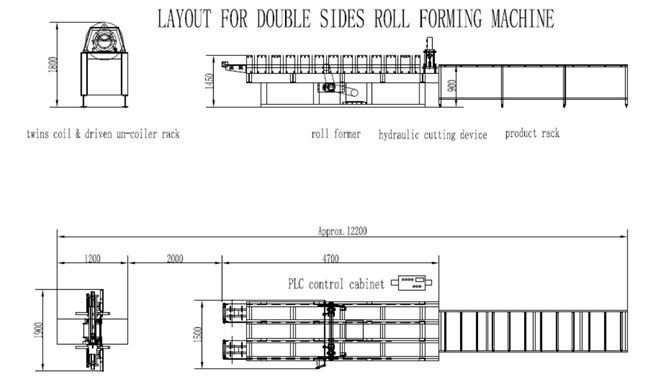

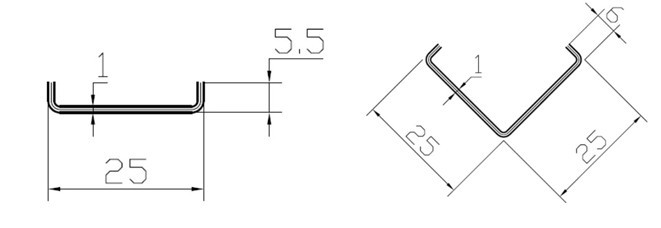

Profile Drawing/Layout/Equipment reference pictures:

wall panel roll forming machine

roofing sheet roll forming machine
